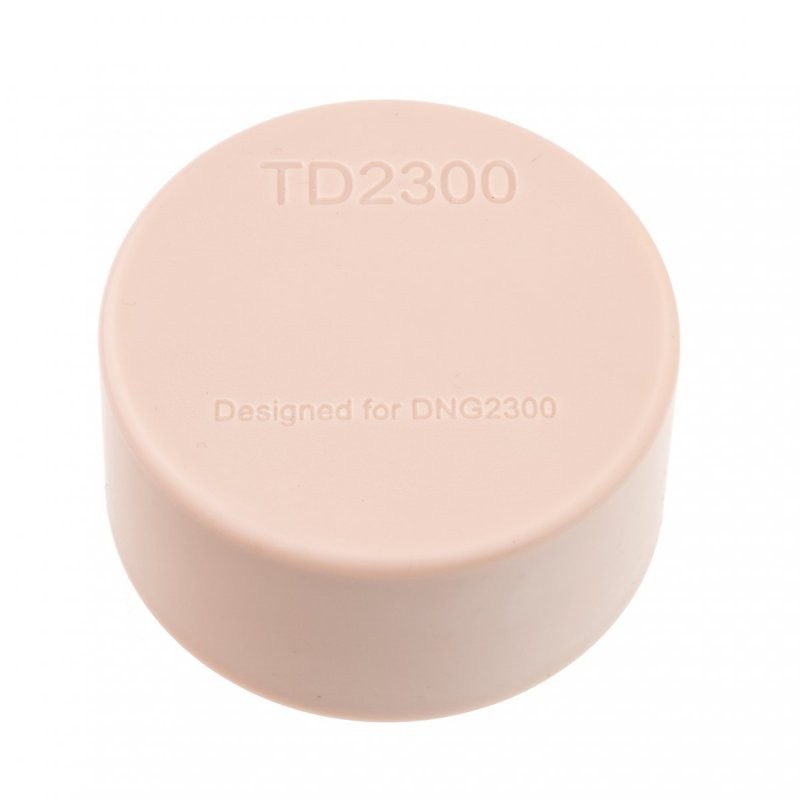

TD2300 Vibroacoustic Transducer for Wall/Ceiling/Window Noise Injection is a compact, high-output transducer that transfers masking noise from a generator into building structures (walls, ceilings, windows) to protect rooms against eavesdropping by laser and contact microphones. For optimal coverage, install one transducer at mid-wall height every 2.5 meters.

Compatible with: Signal Noise Generator 2.0 Voice Mix

Key Features:

• Anti-surveillance protection Injects noise into structural elements to disrupt laser and contact microphone eavesdropping.
• Flexible installation Sensor can be mounted on virtually any surface: walls, ceilings, or window panes.
• High performance, compact size Small footprint with powerful acoustic coupling for effective masking.
• Compatible with SNG VoiceMix 2.0DNG2300 Designed to work with the DNG2300 white-noise generator (or similar signal sources).

Specifications:

• Impedance: 4 Ω
• Frequency response: 58 Hz – 12 kHz
• Power handling: 10 W
• Dimensions: 56 × 27 mm
• Weight: 252 g

Recommended Deployment: Place one TD2300 at the center height of each wall for every 2.5 m of length to ensure uniform structural excitation and effective masking coverage.
