Secutron 4G UltraLife Camera in Installation Box

Secutron 4G UltraLife Camera in Installation Box

SECU46

Our new camera has a support for 4G LTE viewing online for an extremely long time, up to 1 year in standby. HD ready and 70-degree angle with motion detection, makes it ideal camera for remote place monitoring.

Secutron 4G UltraLife Camera in Installation Box

Secutron 4G UltraLife Camera in Installation Box

Our new camera has a support for 4G LTE viewing online for an extremely long time, up to 1 year in standby. HD ready and 70-degree angle with motion detection, makes it ideal camera for remote place monitoring.

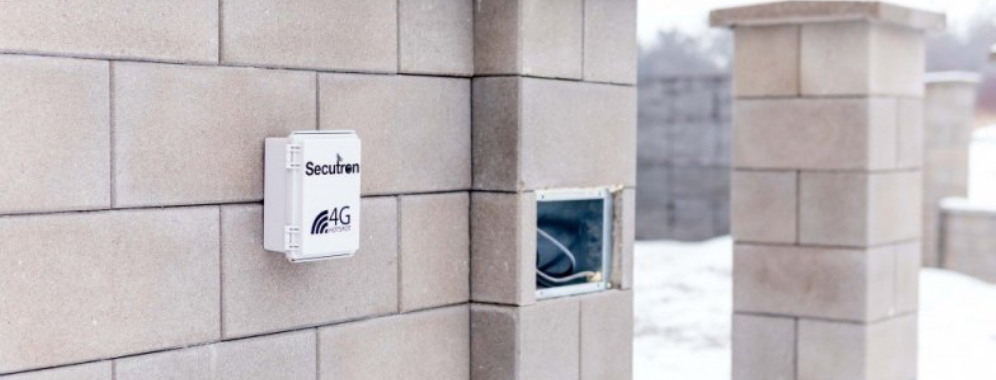

Secutron 4G UltraLife is hidden in the installation box. It’s a camera with extra-large battery made to last in the stand-by mode throughout the whole year. It also offers view option via 4G LTE. It was developed and designed to be placed in remote places which have to be monitored for long periods of time. The camera as all the others in our selection is using a PIR module to safe battery life.

Further on to reduce the battery life even more, a special low consumption GSM trigger was installed, while the full functionality can be activated when turned on.

Camera is using a system of 2 separate circuits controlled by each circuit respectively. One has to be data allowed 4G simcard while the other simcard switches on the main board through SMS commands.

Key Specifications

  • Built-in 4G LTE modem

  • Wireless installation

  • 1 year standby in Power safe mode

  • 2x SIMcards needed

  • Different modes (Online, Guard, Powersafe)


Parameters

Secutron 4G UltraLife is hinned in the installation box. It’s a camera with extra-large battery made to last in the stand-by mode throughout the whole year. It also offers view option via 4G LTE. It was developed and designed to be placed in remote places which have to be monitored for long periods of time. The camera as all the others in our selection is using a PIR module to safe battery life.

Further on to reduce the battery life even more, a special low consumption GSM trigger was installed, while the full functionality can be activated when turned on.

Camera is using a system of 2 separate circuits controlled by each circuit respectively. One has to be data allowed 4G simcard while the other simcard switches on the main board through SMS commands.

Key Specifications

  • Built-in 4G LTE modem

  • Wireless installation

  • 1 year standby in Power safe mode

  • 2x SIMcards needed

  • Different modes (Online, Guard, Powersafe)

Parameters:

  • HD Camera

    resolution 1280x720px.

  • Battery
    3.7V 12 000mAh Li-Pol
  • Integrated 4G LTE modem
    thanks to the integrated 4G LTE modem the Secutron 4G Ultralife can be placed anywhere, where there is mobile coverage to transfer the images.
  • Mobile APP
    Both android and iOS are available to control and command the unit.
  • PIR motion detection
    Thanks to the latest PIR module, camera can be notified within a range of 5-7 meters, based on the placement conditions about the possible object of surveillance.
  • Alarm
    when the camera detects a motion, it can not only record but also send a notification to designated mobile phone.

Online mode

  • Activation with SMS command “on”

  • Motion detection

  • Immediate alarm on movement detection

  • Online preview and viewing options

  • Consumption 150 mA in standby | 400mA while recording

Usage: You should use the online mode, when you want to view something in the real-time. As it is most battery demanding.

Guard mode

  • Activation with SMS command “off”

  • 4G LTE modem is asleep | GSM controller is on

  • Camera is actively recording when motion is being detected. No Alarm notifications are possible.

  • To activate back the Online mode, you need to send SMS “on” and wait 40-60 seconds for the device to bootup.

  • Consumption 4-6 mA in standby | 200-250mA while recording

Usage: When you don’t need to control the area, but you still do need to store records. You can always turn on Online mode and view recordings once a day.

Powersafe

  • Activation via “SLP1”

  • 4G LTE modem is asleep | GSM controller is on only every 30 minutes

  • Camera is actively recording when motion is being detected. No Alarm notifications are possible.

  • Consumption 1-2 mA in standby | 200-250mA while recording

  • Powersafe mode is possible to terminate by sending “SLP0” and when next interval will iterate, the device will go back to Guard mode.

Usage: Same usage as Guard mode, but the power consumption is reduced to minimum yet you cannot wake the device instantly. You have to wait for the device to check if there are commands pending in predefined interval.
